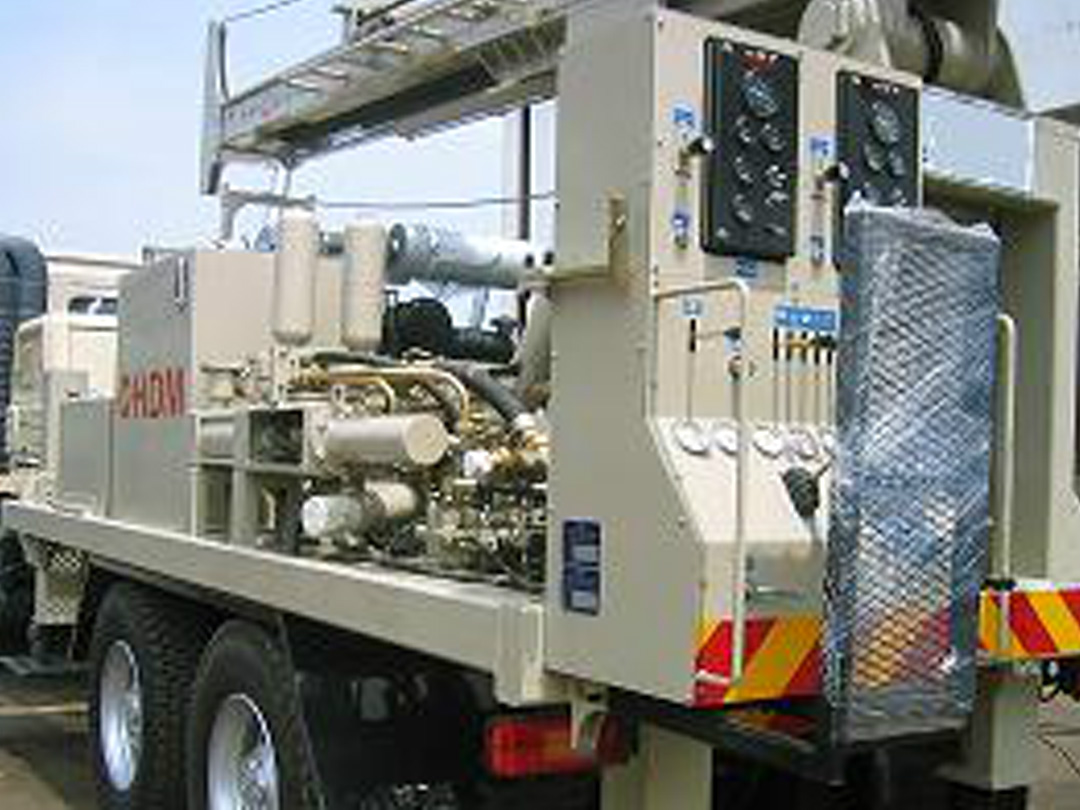

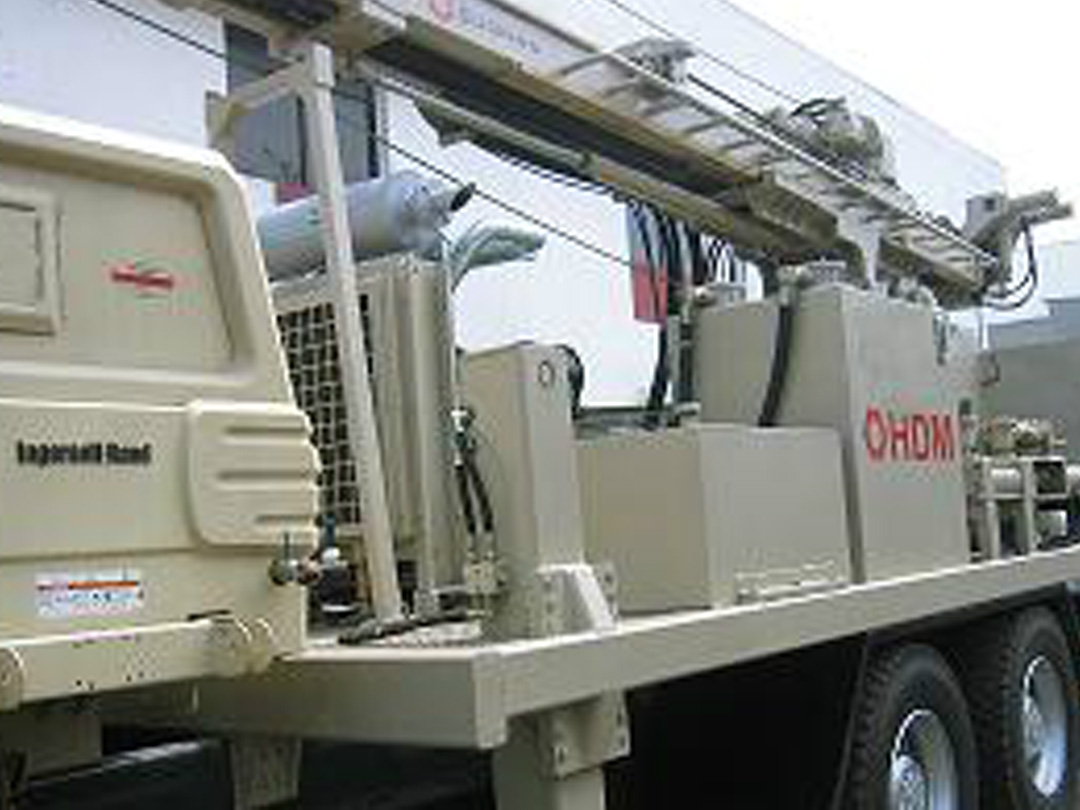

WCD200

Fine Feed
Pull Down : 20.3 m/min
Retract : 13.4 m/min

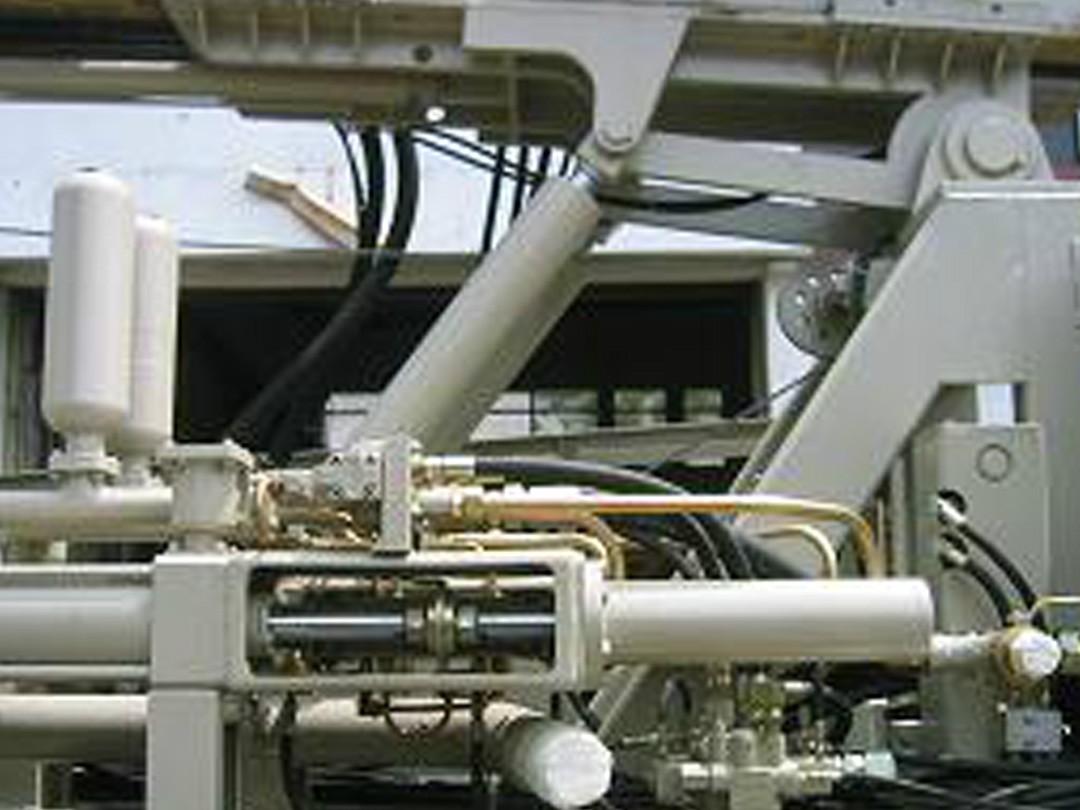

Hydraulic Pump
Main Pump : Triple Tandem Pump
Max./Con't Pressure : 250/210 bar
Max. Flow Rate : 227 litre / min
Oil Tank Capacity : 360 litre

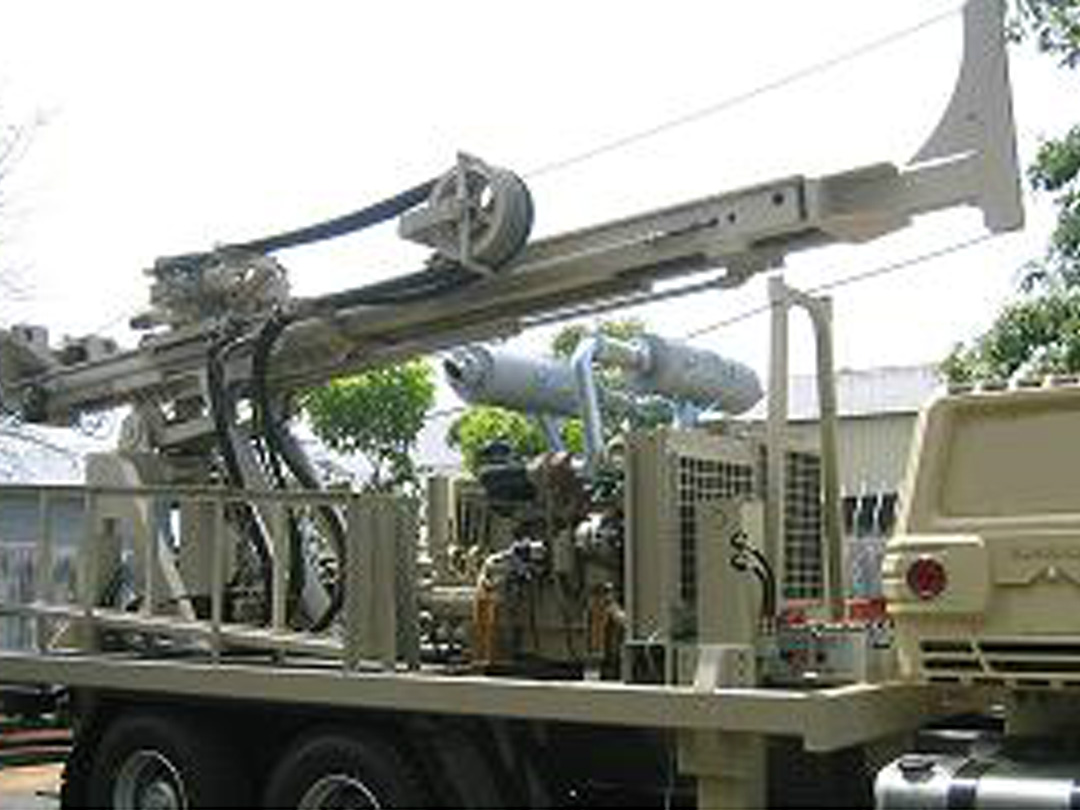

Mast
Total Height : 7500 mm
Max. Feed Stroke : 4000 mm
Max. Pull Down Force : 6400 kg
Max. Retract Force : 8500 kg

Fine Feed
Pull Down : 6.2 m/min
Retract : 4.6 m/min

Rapid Feed
Pull Down : 21.8 m/min
Retract : 16.3 m/min

Crawler
Trimming Speed : 2.5 km/hr
Ground Clearance : 360 mm
Total Width : 2500 mm
Track Width : 500 mm
Axle Distance : 2700 mm

Rotator
Type : Hollow Spindle Double Motor
Max. Torque
Gang Stage 1 : 3375 NM
Gang Stage 2 : 4050 NM
Gang Stage 3 : 8100 NM

Max. Speed
Gang Stage 1 : 24-100 rpm
Gang Stage 2 : 12-50 rpm
Gang Stage 3 : 6-25 rpm

Hydraulic Winch
Max. Line Pull : 1,500 kg
Cable : Ø10mm X 30m

Hydraulic Clamp
Clamping Force : 25tons
Breakout Force : 11 tons
Capacity : Ø50 - 330 mm

Recommended Drill Capacity
Max. Drilling : Ø38 - 250 mm
Dia 6" Roller Bit : 200 m
Dia 6-1/2" DTH Hammer / Bit : 200 m

Hydraulic Jack
: 4 nos. fixed at front and rear corner

Flushing System
: Air or water

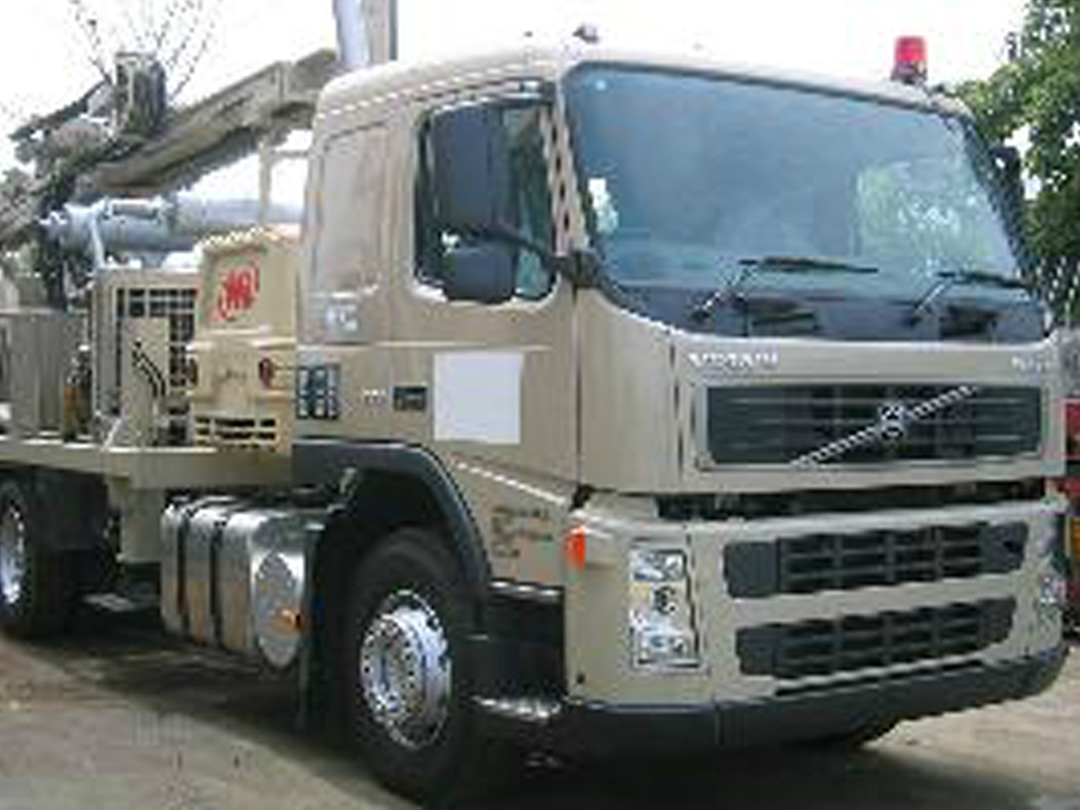

Dimensions (mast on horizontal position)
2500mm (W) X 3563mm (H) X 7500mm (L) (on Crawler)
2500mm (W) X 4020mm (H) X 11030mm (L) (on FM12)

Gross Weight
: 10 tons (on Crawler)
: 18 tons (on FM12)

* Drilling Capacity is depending on different application of drilling works, on-site soil condition, etc. ** Dimensions and Weights are approximate.
