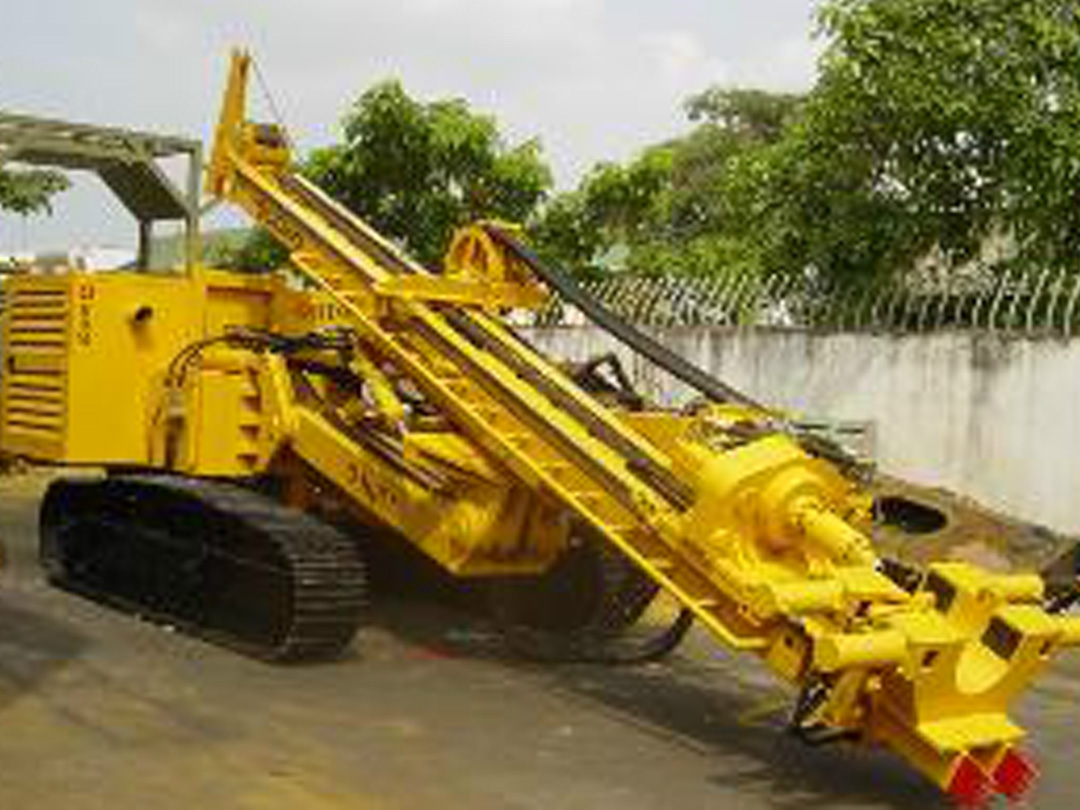

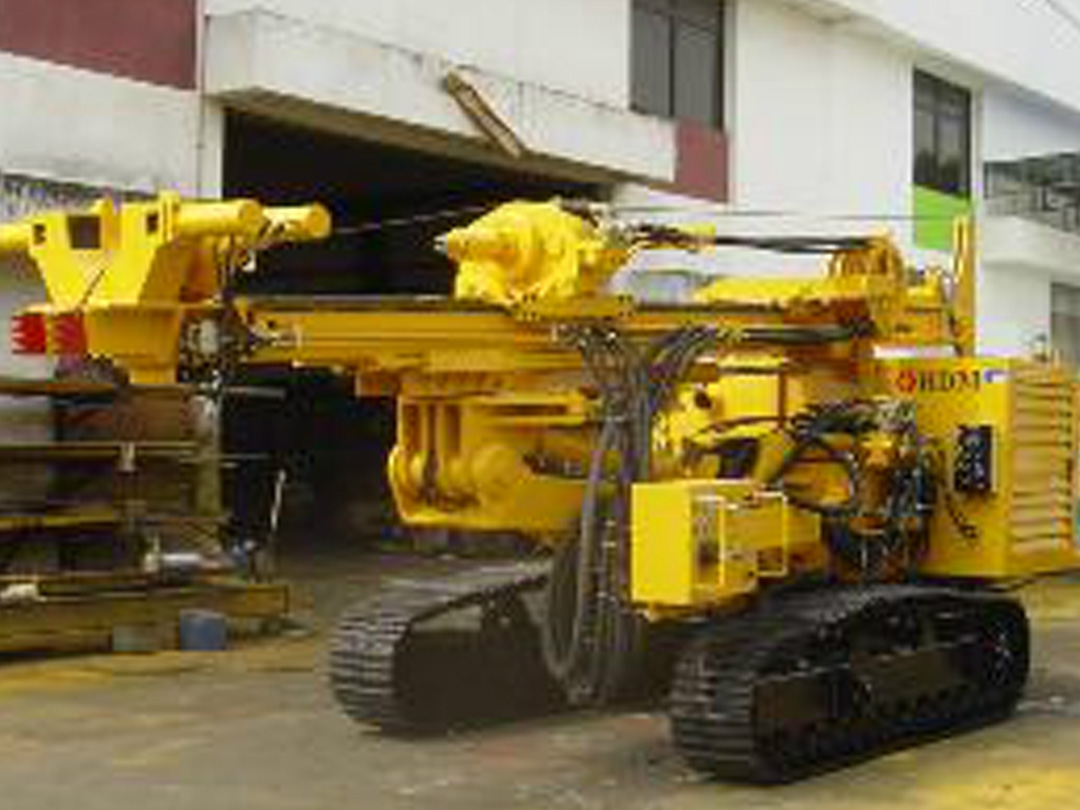

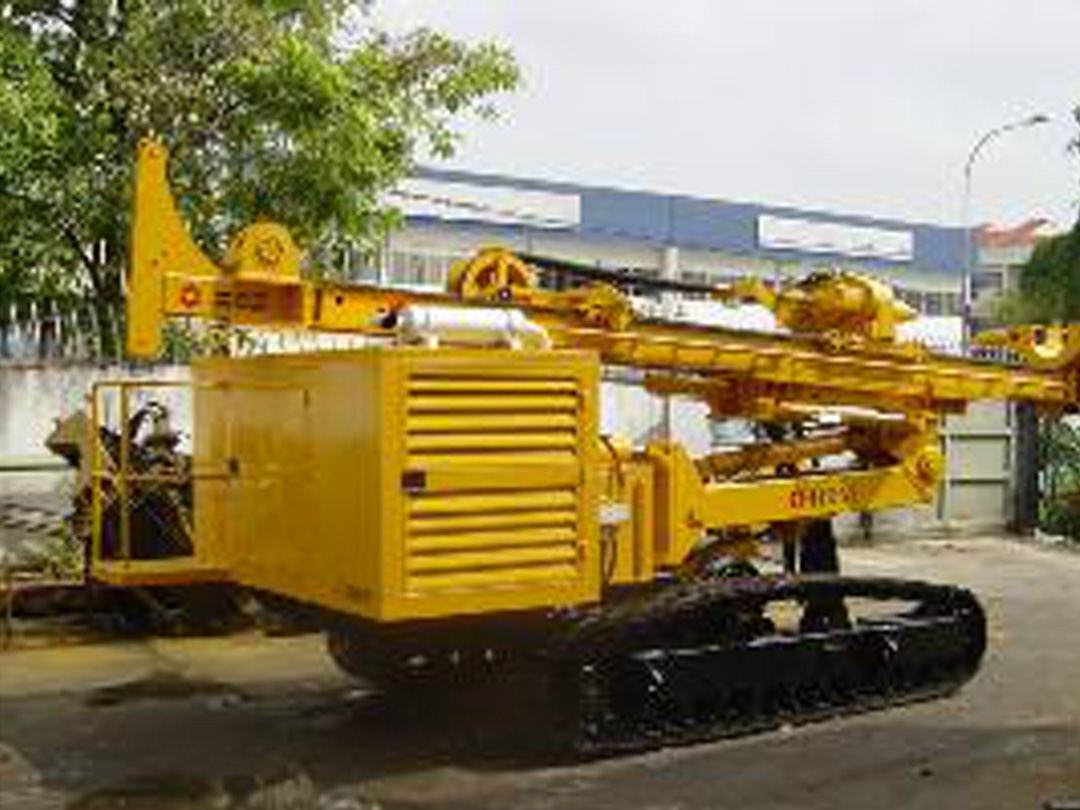

CD80

Hydraulic
Main Pump : Triple Tandem Pump
Max/Con't Pressure : 250/210 bar
Max. Flow Rate : 227 liters/min Oil Tank Capacity : 360 liter

Mast
Total Height : 7500 mm
Max. Feed Stroke : 4000 mm
Max. Pull Down Force : 6400 kg
Max. Retract Force : 8500 kg

Fine Feed
Pull Down : 6.2 m/min
Retract : 4.6 m/min

Rapid Feed
Pull Down : 21.8 m/min
Retract : 16.3 m/min

Crawler
Trimming Speed : 2.5 km/hr
Ground Clearance : 360 mm
Total Width : 2400 mm
Track Width : 400 mm
Axle Distance : 2700 mm

Standard Accessories
Power Rotator : Hollow Spindle Double Motor
Floating Sub : 3-1/2" or 4-1/2" API REG.
Top Flush Water Swivel : ø1-1/2"
Hydraulic Winch : ø10mm x 30m cable
Hydraulic Clamp : ø50 - ø330 mm
Hydraulic Rod Breaker

Power Rotator
Type : Hollow Spindle Double Motor
Speed
Gang Stage 1. : 24 - 100 rpm
Gang Stage 2. : 12 - 50 rpm
Gang Stage 3. : 6 - 25 rpm
Max. Torque
Gang Stage 1. : 3375 NM
Gang Stage 2. : 4050 NM
Gang Stage 3. : 8100 NM

Hydraulic Winch
Max. Line Pull : 1500 Kg.
Cable : ø10mm X 30m

Hydraulic Clamp and Rod Breaker Device
Clamping Force : 25 tons
Breakout Force : 11 tons
Capacity : ø50 - ø330 mm

Hydraulic Clamp and Rod Breaker Device
Clamping Force : 25 tons
Breakout Force : 11 tons
Capacity : ø50 - ø330 mm

Drilling Capacity*
Drilling Diameter : ø50 - ø350 mm
Max. Drilling Depth : 150 meter @ 3-1/2" API REG.
Depth Capacity : 120 meter @ ø6"
100 meter @ ø8"
75 meter @ ø10"
50 meter @ ø12"
35 meter @ ø14"

Dimensions**
: 2660mm (W) X 3350mm (H) X 7500mm (L)

Gross Weight*
: 10 tons

Gross Weight*
* Drilling Capacity is depending on different application of drilling works, on-site soil condition, etc.
** Dimensions and Weights are approximate.
