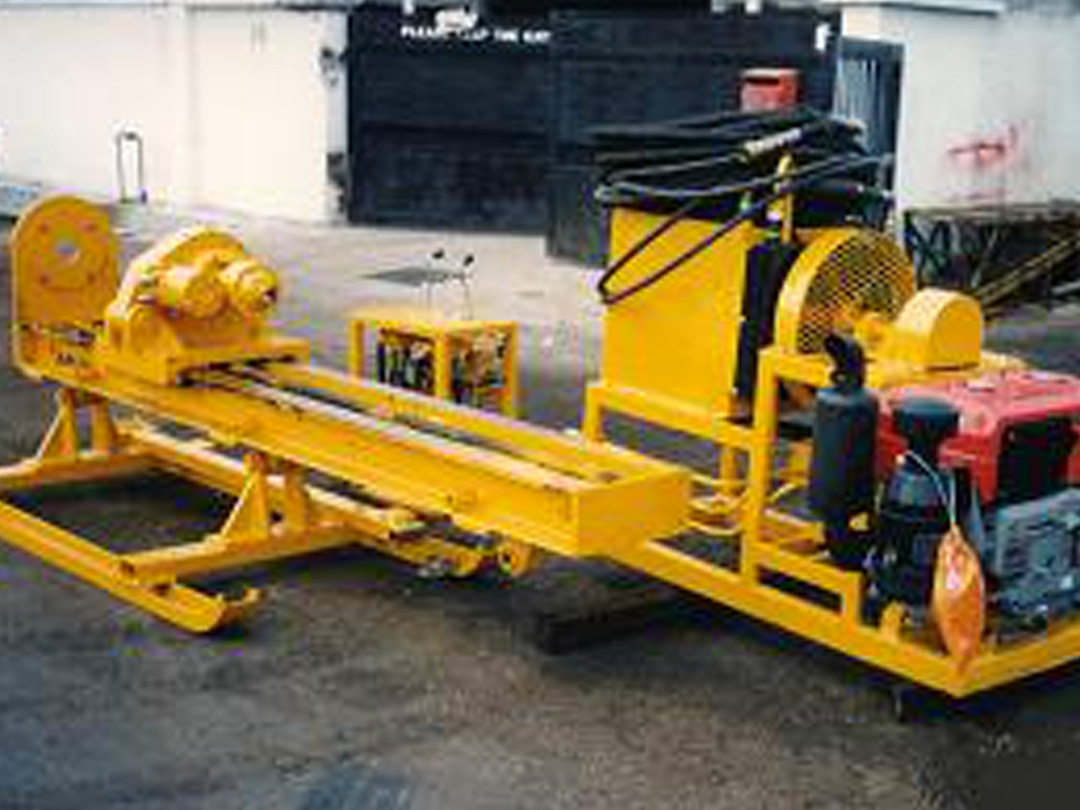

PD20

Hydraulic
Pump : Gear Pump
Max. Flow : 93 liters/min
Max. Pressure : 210 bar

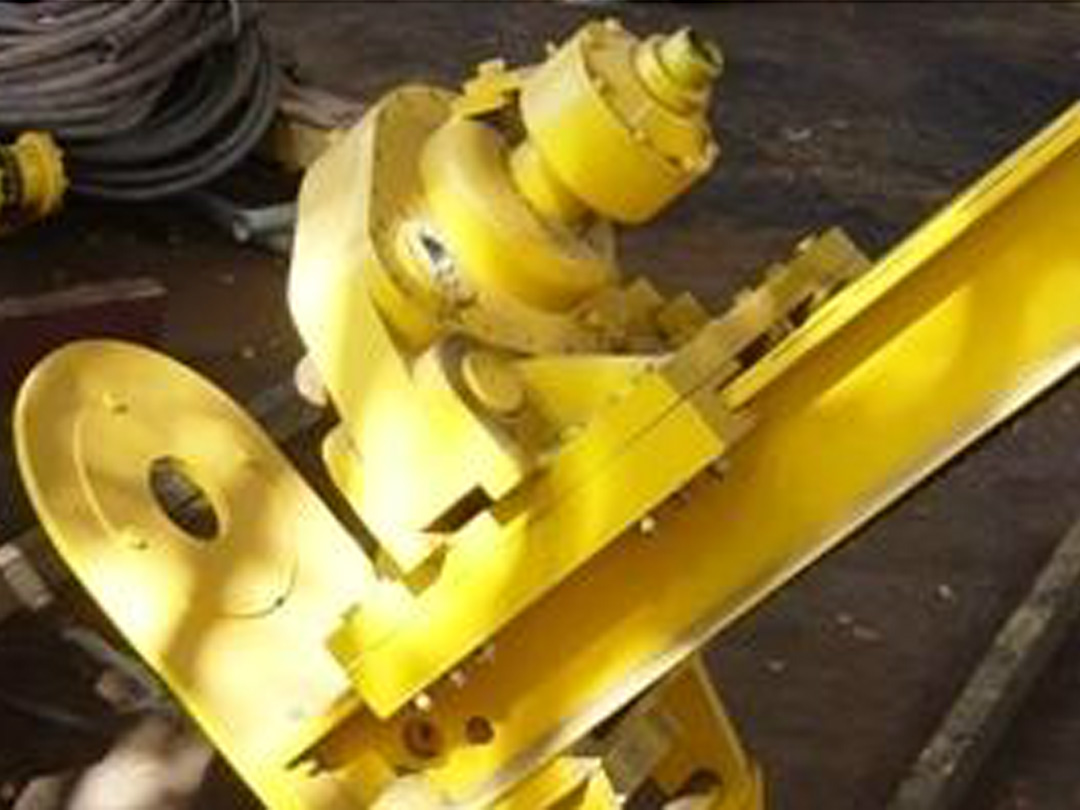

Drill Mast
Total Length (Height) : 2650 mm
Max. Stroke : 1800 mm
Max. Retract Force : 4500 kg
Max. Drill Rod Capacity : 1500 mm

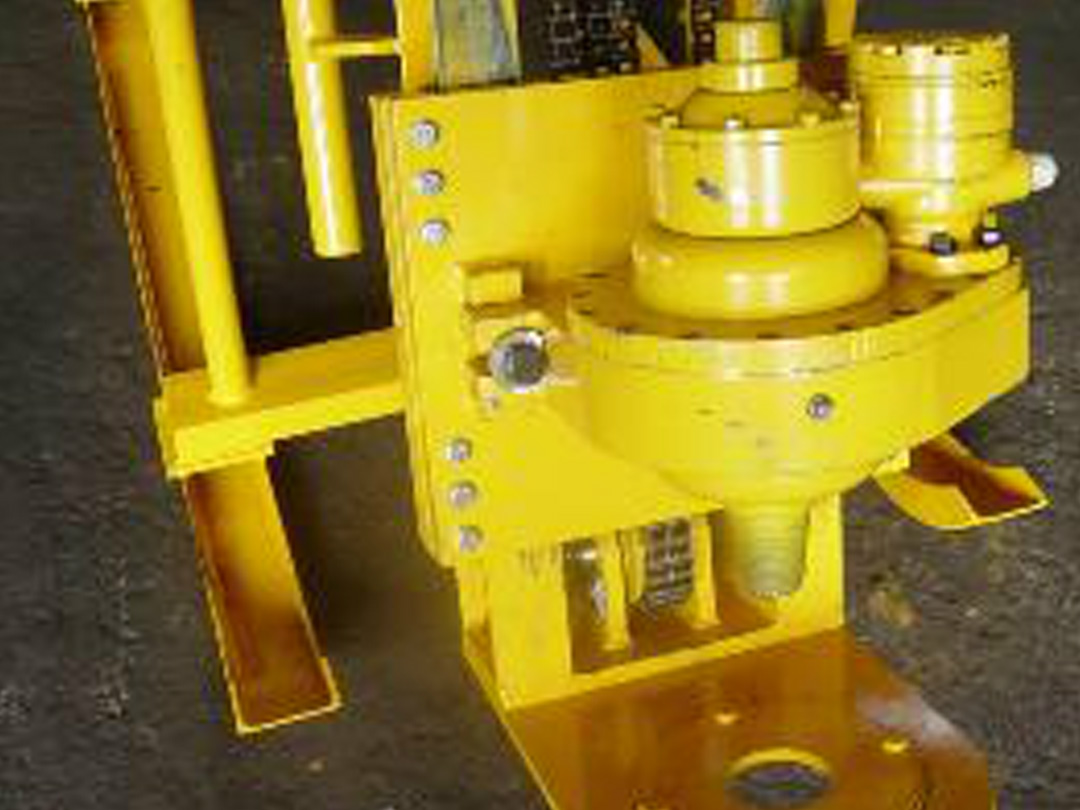

Rotator
Max. Spindle Speed
Ratio 1 : 1 : 727 rpm
Ratio 2 : 2.36 : 307 rpm
Ratio 3 : 9.47 : 76 rpm

Max. Spindle Torque
Ratio 1 : 1 : 171 NM
Ratio 2 : 2.36 : 409 NM
Ratio 3 : 9.47 : 1620 NM
Max. Input Pressure : 210 bar

Drilling Capacity*
HQ : 150 m
NQ : 200 m
BQ : 250 m
4" RC : 100 m

Dimension**
Drill Mast : 920mm (W) x 2200mm (L) x 2650mm (H)
Control Unit : 320mm (W) x 500mm (L) x 620mm (H)
Power Unit : 610mm (W) x 1480mm (L) x 955mm (H)

Weight**
Mast : 585 kg
Control Unit : 45 kg
Power Unit : 380 kg

* Drilling Capacity is depending on different application of drilling works, on-site soil condition, etc. ** Dimensions and Weights are approximate.
