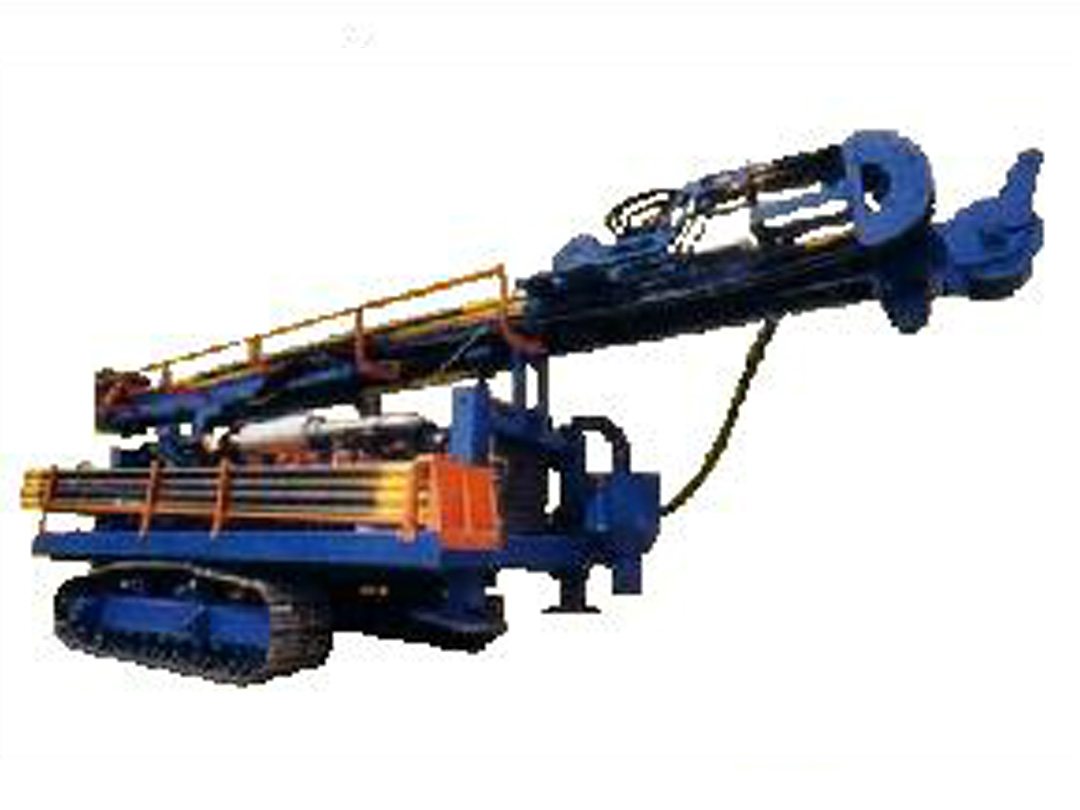

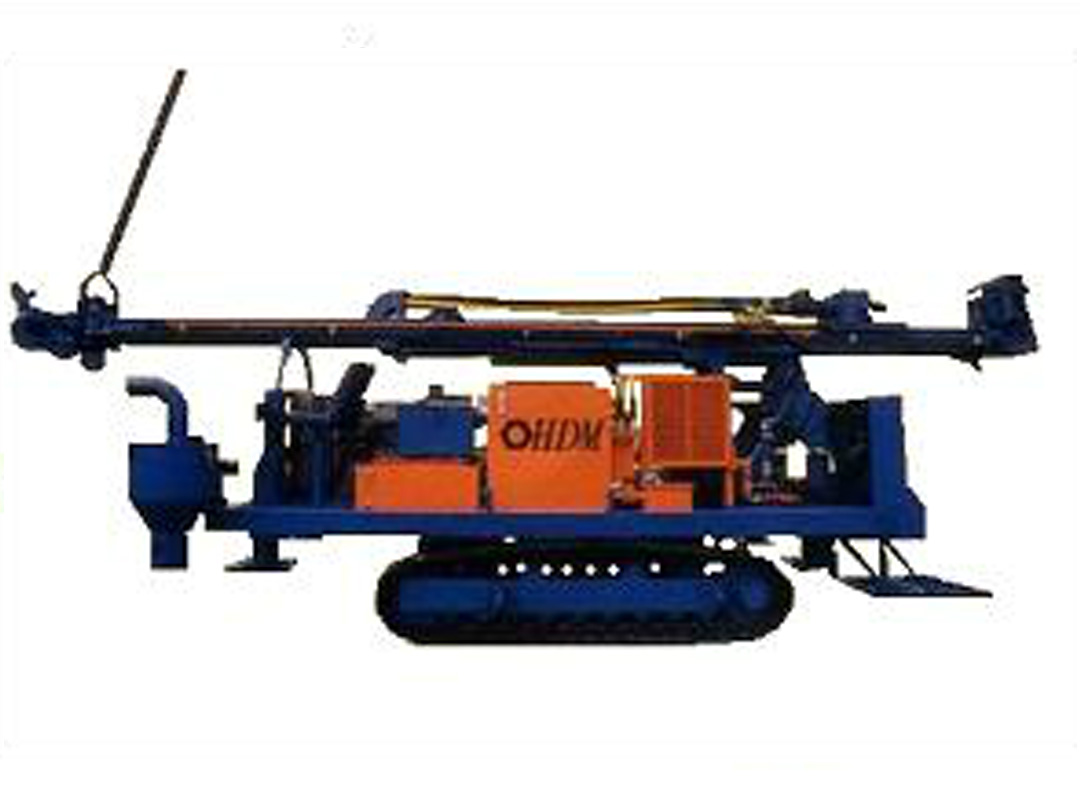

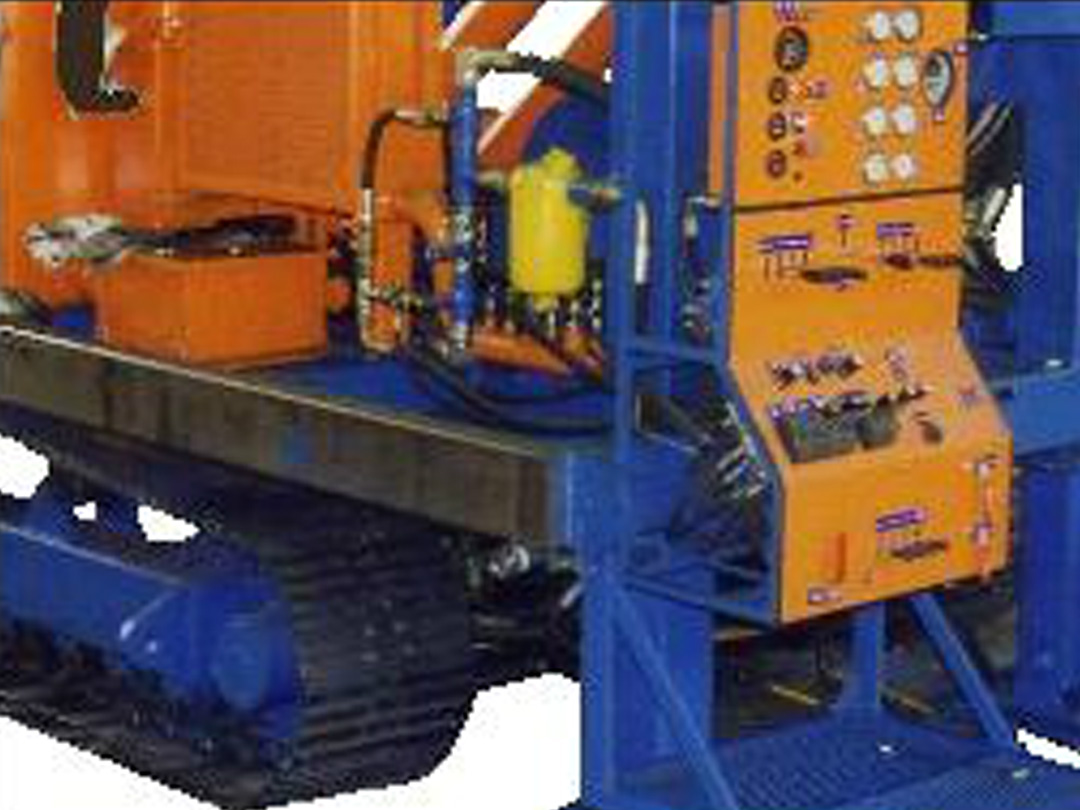

GD1000

Hydraulic
Main Pump : Variable Piston Pump(220 liters/min)
Auxiliary : Geared Pump(48 liters/min)
Max./Con't Pressure : 250/210 bar
Tank Capacity : 360 liters

Rotator
Model : Core-1000
Type : Hollow Spindle
Max. Torque : 1. 950 NM
2. 2299 NM
3. 9770 NM
Max. Speed : 1. 1092 rpm
2. 451 rpm
3. 138rpm

Drill Mast
Total Height : 10700 mm
Capacity : 6.0m rod

Rotator Traverse
Feed Stroke : 7000mm
Pull Down Force : 10413 kgf
Retract Force : 12148 kgf

Fine Feed
Pull Down : 20.3 m/min
Retract : 13.4 m/min

Rapid Feed
Pull Down : 59.7 m/min
Retract : 39.4 m/min

Crawler
Speed : 2.5 km/hr
Ground Clearance: 360 mm
Total Width : 2700 mm
Track Width : 500 mm
Axle Distance : 2700 mm

Main Winch
Winch Torque : 83.3 KN
Winch Speed : 47 m/min
Cable Capacity : Ø16mm x 30m

Wireline Winch
Full Drum : 1.9 KN
Bare Drum : 6.78 KN
Cable Capacity : Ø6mm x 1000

Foot Clamp
Jaw Capacity : AW - HW
BQ - HQ

Stabilizer
Hydraulic Jack : 4 sets at corners

Drilling Capacity*
HW : 350 m
NW or HQ : 600 m
BW or NQ : 1000 m

Dimension**(mast on horizontal position)
Width : 2700 mm
Length : 10700 mm
Height : 3200 mm

Flushing System
Mud or Water

Weight**
10 tons

* Drilling Capacity is depending on different application of drilling works, on-site soil condition, etc. ** Dimensions and Weights are approximate.
