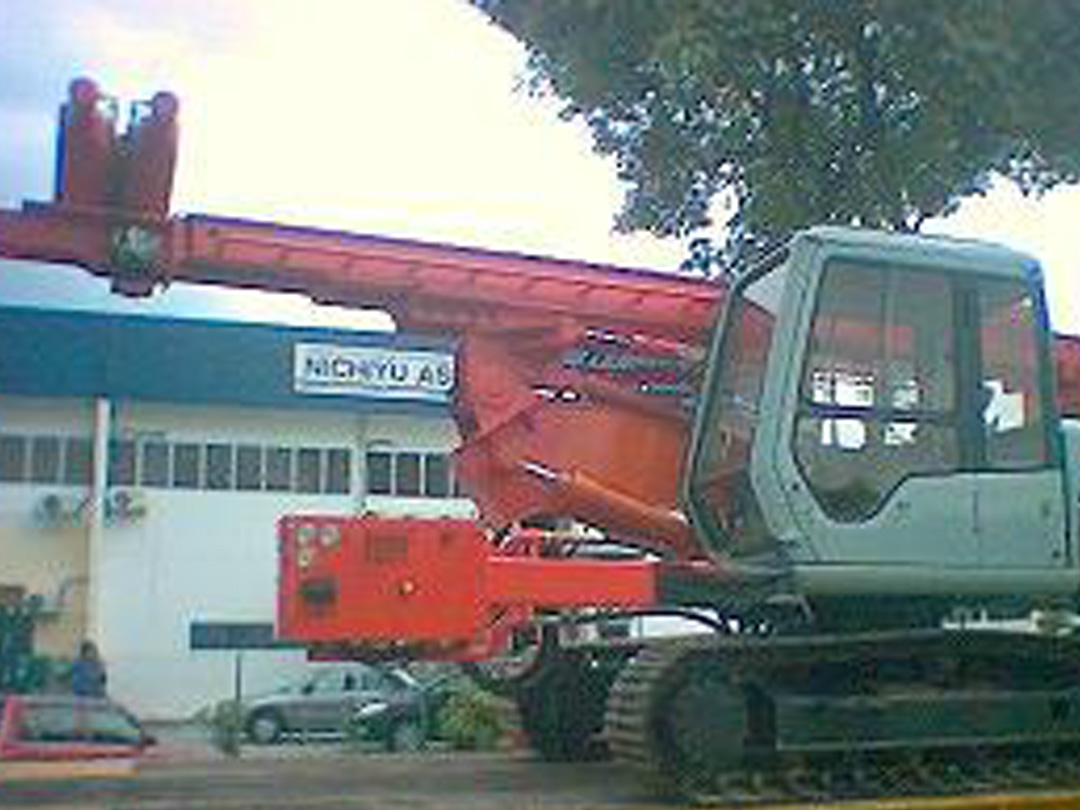

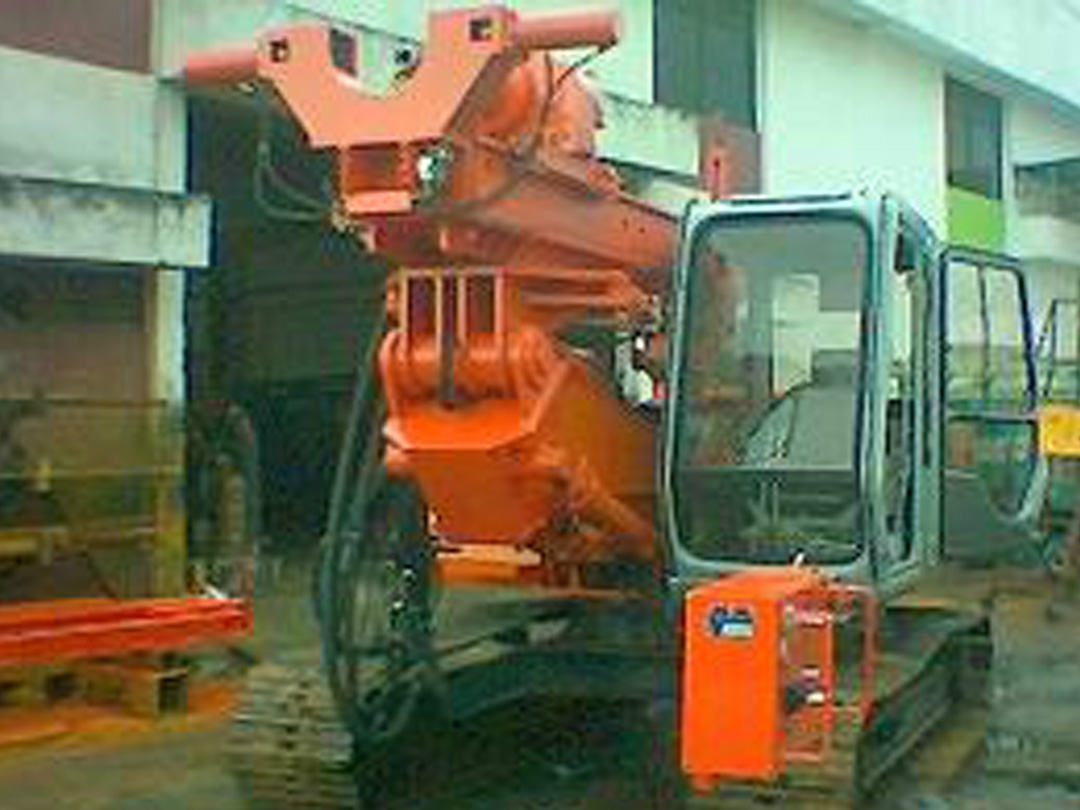

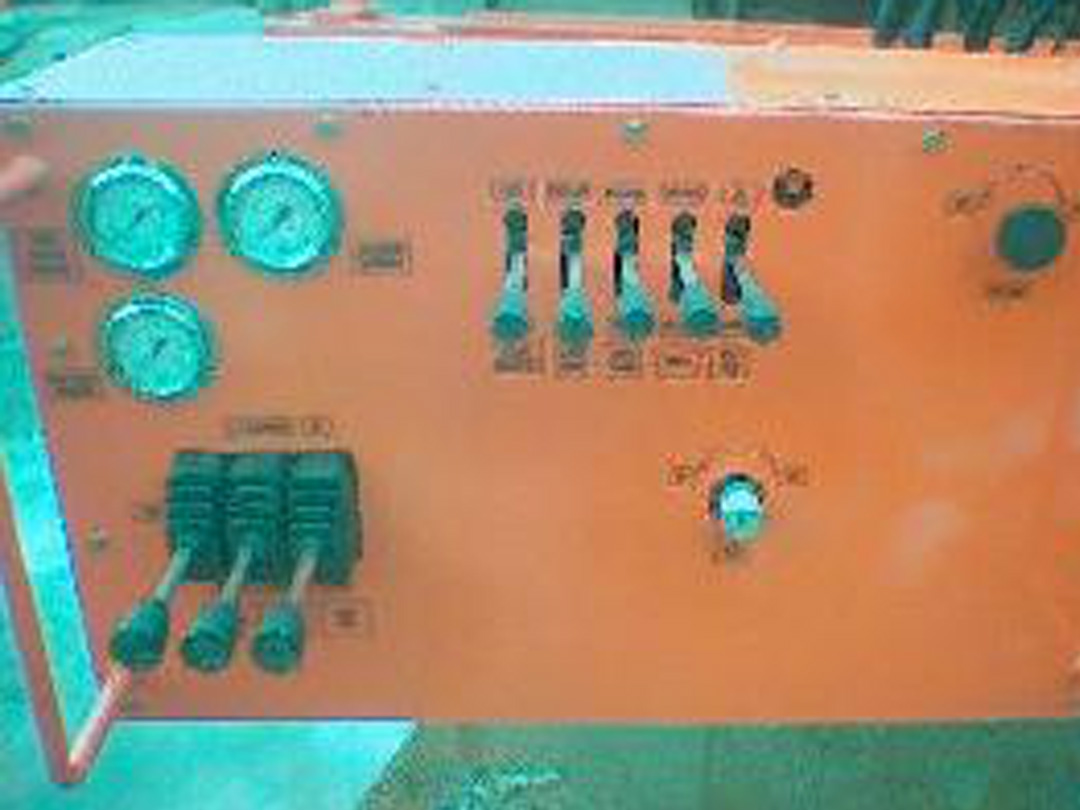

CD80EX

Model : HDM-CD80EX
Function : Soil Sampling, Site Investigation, Ground Anchor, DTH Hammer, Casing Drill, Auger Drill, Micropile Drill, Water-Well Drill

Mast
Total Height : 7500 mm
Max. Feed Stroke : 4000 mm
Max. Pull Down Force : 6400 kg
Max. Retract Force : 8500 kg

Mast
Total Height : 7500 mm
Max. Feed Stroke : 4000 mm
Max. Pull Down Force : 6400 kg
Max. Retract Force : 8500 kg

Fine Feed
Pull Down : 6.2 m/min
Retract : 4.6 m/min

Rapid Feed
Pull Down : 21.8 m/min

Standard Accessories
Power Rotator : Hollow Spindle Double Motor
Floating Sub : 3-1/2" or 4-1/2" API REG.
Top Flush Water Swivel : ø1-1/2"
Hydraulic Winch : ø10mm x 30m cable
Hydraulic Clamp : ø50 - ø330 mm
Hydraulic Rod Breaker

Power Rotator
Type :Hollow Spindle Double Motor
Speed
Gang Stage 1. : 24 - 100 rpm
Gang Stage 2. : 12 - 50 rpm
Gang Stage 3. : 6 - 25 rpm

Max. Torque
Gang Stage 1. : 3375 NM
Gang Stage 2. : 4050 NM
Gang Stage 3. : 8100 NM

Hydraulic Winch
Max. Line Pull : 1500 Kg.
Cable : ø10mm X 30m

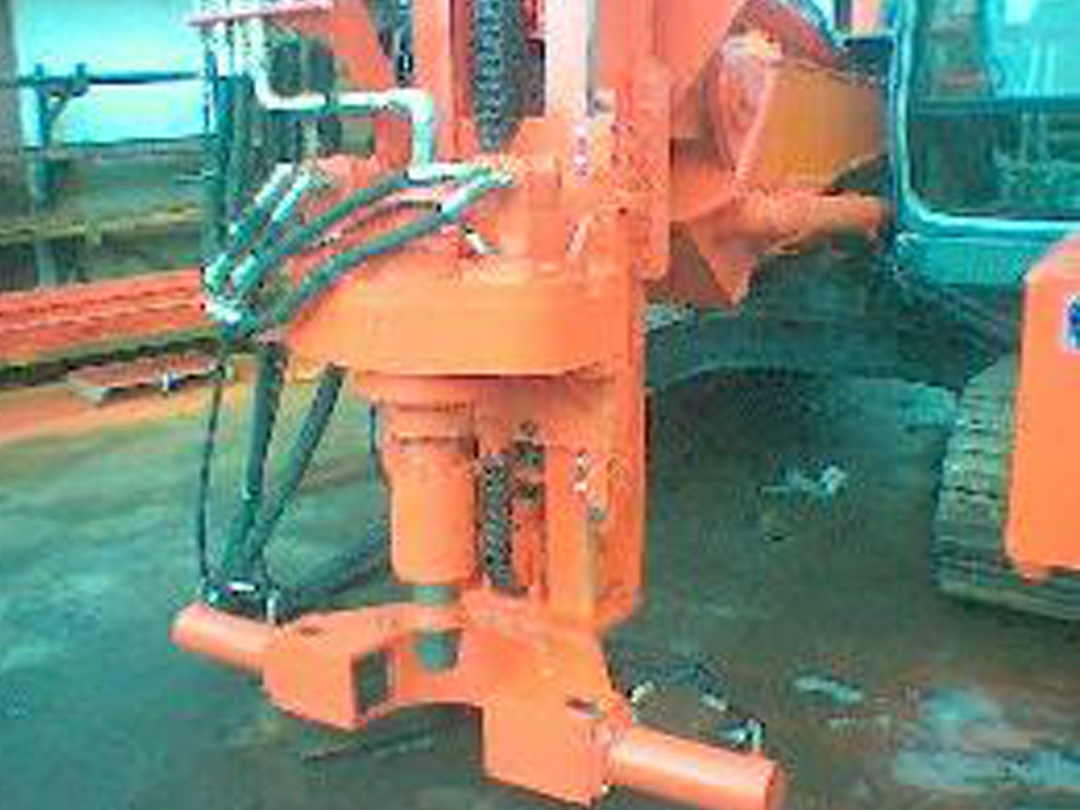

Hydraulic Clamp and Rod Breaker Device
Clamping Force : 25 tons
Breakout Force : 11 tons
Capacity : ø50 - ø330 mm

Drilling Capacity*
Drilling Diameter : ø50 - ø350 mm
Max. Drilling Depth : 150 meter @ 3-1/2" API REG.
Depth Capacity : 120 meter @ ø6"
: 100 meter @ ø8"
: 75 meter @ ø10"
: 50 meter @ ø12"
: 35 meter @ ø14"

Dimensions**
2800mm (W) X 3650mm (H) X 7500mm (L) (mounted on EX200)

* Drilling Capacity is depending on different application of drilling works, on-site soil condition, etc. ** Dimensions and Weights are approximate.
